Aluminum Cast

Sno-Safe Original Snow Guard – Aluminum Cast

$5.98 CAD

Sno-Safe Original Snow Guard – Aluminium Cast

Volume Discounts:

1 to 250 pieces: $5.98
251 to 1,000 pieces: $5.75
1,001 + pieces: $5.50

This product has extended lead times. Contact us directly at info@sno-safe.ca to place and order

In stock

SKU: 8-ALU


Looking for a Snow Guard Colour We Don't Have Listed? Contact us directly at info@sno-safe.ca to discuss custom colours

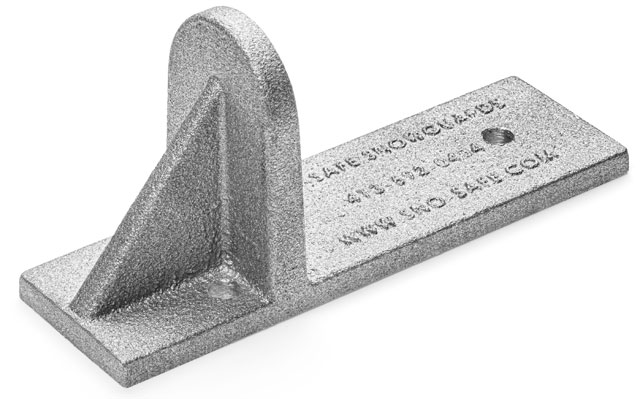

The Sno-Safe Original Aluminum is manufactured using 319 Aluminum. Appropriate for most metal, rubber, TPO, PVC, and glass roofs. Square channel grooves maximizes bonding strength. Exceptionally resistant to corrosion.

319 Aluminum is a 6% Si and 3.5% Cu alloy with 1.0 Fe maximum. Ultimate tensile strength is 27 ksi and shear strength is 22 ksi.

Note: Aluminum in "Direct" contact with other metals can cause a galvanic reaction. A galvanic reaction occurs when two different metals are in contact in a conductive environment such as water. Paint on the metal and sealant on the snow guards add somewhat of a barrier to this reaction but be sure to check the material of the roof and be prepared for the risk of reaction.

When using screws, which will contact both the aluminum snow guard and the roofing material, we strongly suggest using galvanized screws which will prevent any galvanic reaction between the two metals. Our aluminum snow guards should not be used on Copper or Brass surfaces.

Shear Load Tested at an Independent Lab:

Holds 1,440 lbf when fastened to a metal roofing panel with SB-190 Everseal Adhesive  only

Holds 2,620 lbf when fastened to a metal roofing panel with SB-190 Everseal Adhesive & screws


VIEW SHEAR LOAD TESTING REPORT


Sno-Safe Advantages

INSTALLATION

  • Attach using adhesive only, screws, or both
  • Square channel grooves for adhesive increases shear strength
  • low profile design provides minimal distraction

STRONG

  • Gusseted and thick wall design for maximum strength
  • Virtually unbreakable from snow and ice

LASTING

  • Manufactured with a high quality 319 Aluminum
  • Resists temperature extremes


Square channel grooves for adhesive increases shear strength


Note: Verification with the roofing panel/system manufacturer is recommended prior to installation of snow guards this includes but is not limited to panel loading, fastening and installation details and substrate material/thickness.

Please see the installation guide below.


DOWNLOAD CAD DRAWINGS


NEED ADHESIVE SEALANT FOR FASTENING SNO-SAFE SNOW GUARDS?
